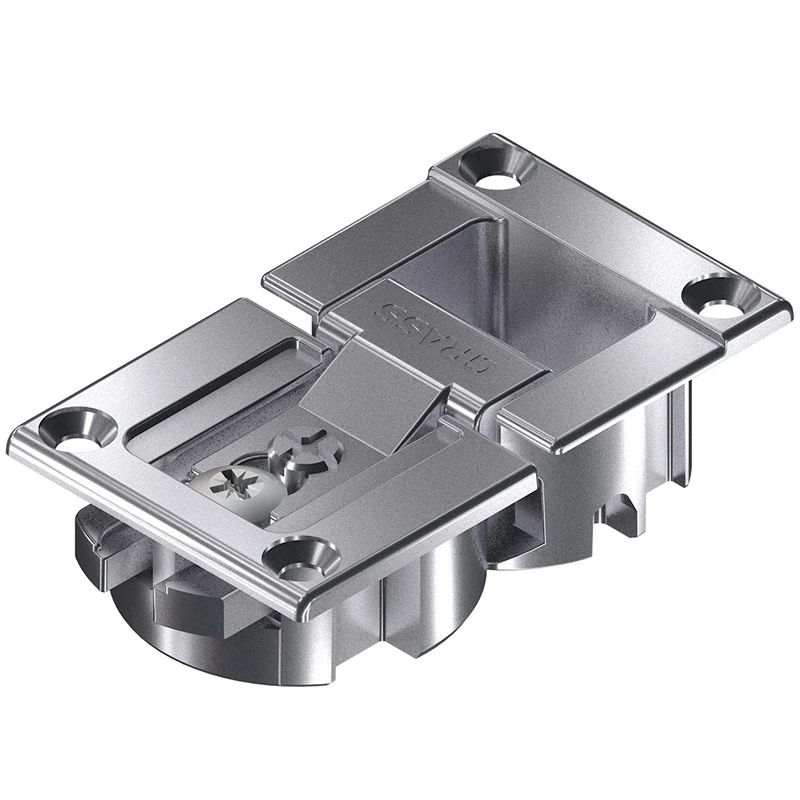

Grass Tiomos Adjustable 90° Drop Flap Hinge – EACH (Nickel)

Grass Tiomos Flap hinge, a 90º hinge for flap doors. This newly designed flap hinge provides additional features and benefits superior to the older versions.

• NEW SUPERIOR DESIGN!
• Replacement for discontinued Grass Flap Hinge #210.735.04.0015
• Sleek modern design, narrow joint.
• 90° opening angle.
• Detachable for ease of installation.
• For large overlays of up to 3/4″.
• Bottom and flap door are flush inside the cabinet when doors are open.
• For flap thickness of  9/16″ to 13/16″ (14-21mm).
• 35mm cup, 12mm deep. Identical drilling pattern for base and flap door.

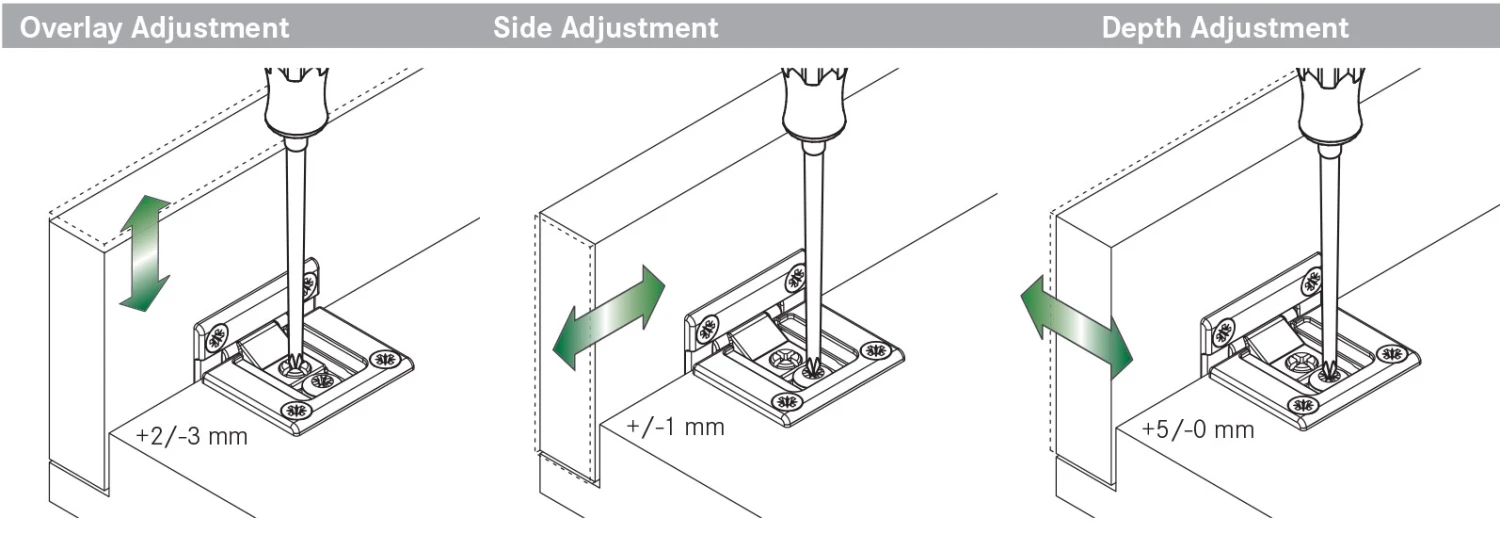

• Features 3-dimensional adjustment and sturdy design.
• Screws not included.
• The Tiomos Flap hinge provides a solution of your flap applications and is also compatible with Grass Kinvaro D-M or D-S drop down flap stays.
