Hettich Quadro 4D V6 IW21 21" (533mm) Silent System Full-Extension Undermount Drawer Slide - PAIR

Hettich Quadro 4D V6 IW21 21" (533mm) Silent System Full-Extension Undermount Drawer Slide - PAIR - Image 2

Hettich Quadro 4D V6 IW21 21" (533mm) Silent System Full-Extension Undermount Drawer Slide - PAIR - Image 3

Hettich Quadro 4D V6 IW21 21" (533mm) Silent System Full-Extension Undermount Drawer Slide - PAIR - Image 4

Original price was: $39.23.Current price is: $27.46.

SKU: AGFYZ 396924 Category: Drawer Slides & Drawer Glides

Unbeatable Quality Guaranteed
7 days return and exchange
Green products, guaranteed.
Quality Meets Affordability

Description

Hettich QUADRO 4D V6 IW21 Silent System Full-Extension Slides for wooden drawers features convenient adjustment in 4 directions: height, side, tilt and depth. You’ll hardly hear a Quadro and you won’t see it at all, Silent System closes all drawers gently and softly making them a great choice for high-quality cabinets and furniture.

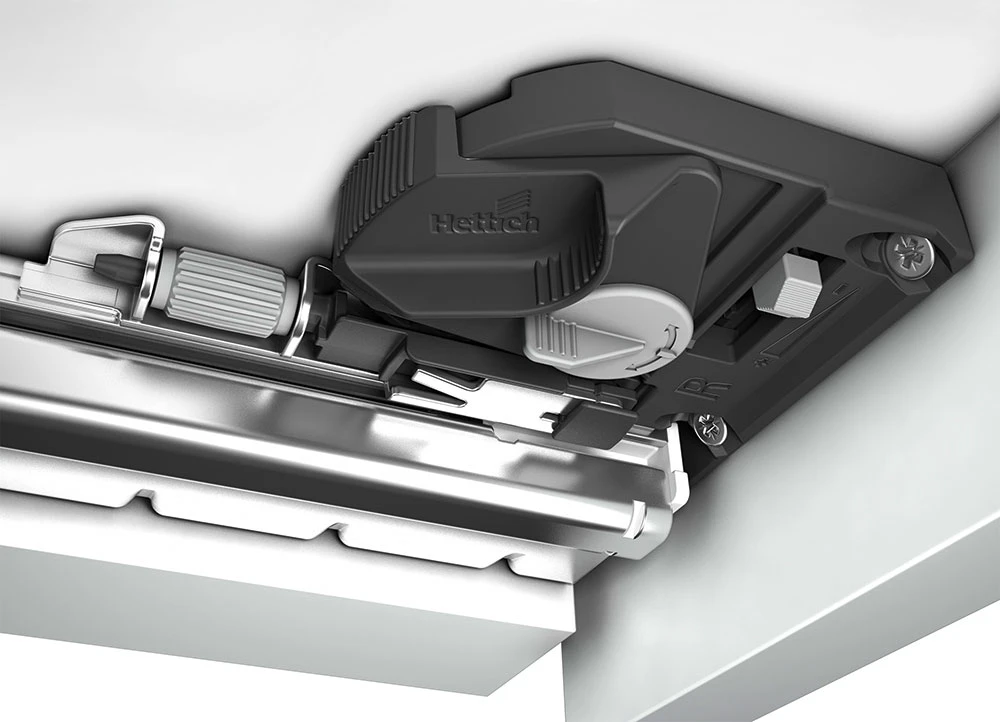

NOTE: Front Fixing brackets and tilt adjusters must be ordered separately, see below.

Silent System: the integrated Silent System closes the drawer quietly and gently.
Tool-less, intuitive height adjustment up to + 2 mm, side adjustment up to +/- 1.5 mm, depth adjustment up to +/- 2 mm and tilt adjustment (optional tilt adjusters must be ordered separately).
Convenient slide on assembly: simply place the drawer on the runner, slide in, done!
For up to 5/8″ (16 mm) drawers side thickness.
For face frame or frameless applications.
Galvanized steel, suitable for rooms exposed to moisture.

Manufacturer	Hettich
Manufacturer Location	Germany
Color/Finish	galvanized
Material	steel
Style	concealed/undermount
Type	concealed soft-close slides
Warranty	Limited lifetime warranty.
Load Rating	90lbs. (40.823kg)
Extension	full extension
Size	21" (533mm)
Mounting	Undermount
Closing Type	Soft Close
Additional	Recommended Use: Heavy-duty slide designed for kitchen cabinets, bathroom vanities, desks and furniture. Load capacity: 90 lbs dynamic Mounting: Concealed, undermount; For face frame & frameless applications. Features: Full-extension runner for wooden drawers. Tool-less, intuitive height adjustment up to + 2 mm, side adjustment up to +/- 1.5 mm, depth adjustment up to +/- 2 mm and tilt adjustment. For up to 5/8" (16 mm) drawers side thickness. Perfect vertical and lateral stability & Soft closure with self close – the spring-operated mechanism closes the drawer safely and automatically. Maintenance-free through self-cleaning ball tracks. Robust, resilient tracks to ensure optimal runner action through precision-guided steel balls. Slide-on assembly – simply place the drawer on the runners and push in for connection. Silent System: the dampening device integrated in Quadro IW21 closes the drawer softly and soundlessly. Slide Action: Ball-bearing Meets or exceeds ANSI/BHMA 156.9 grade 1 requirements as per ANSI/BHMA 156.9 grade 1 specifications on a 21“ length slide
