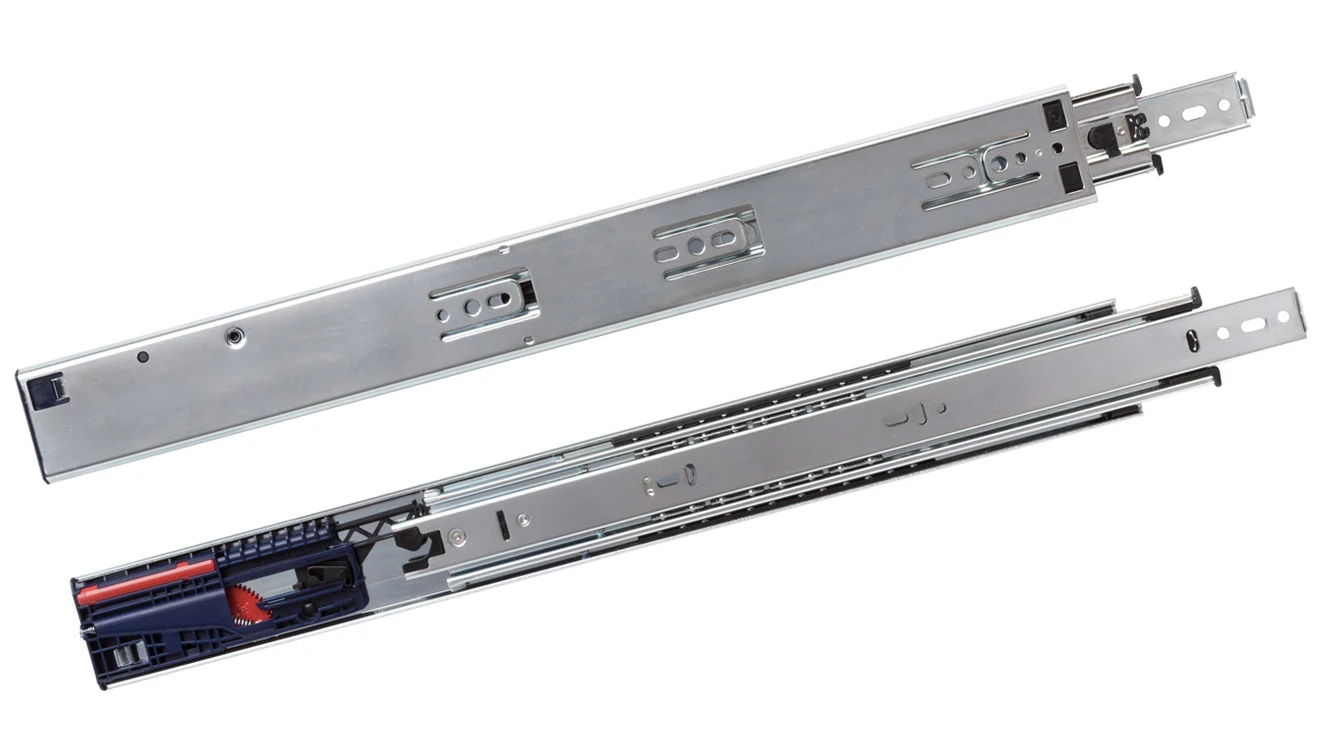

Knape And Vogt 8650FM 20" (508mm) 150lbs. (68.039kg) Heavy-Duty Soft-Close, Full Extension Drawer Slides - PAIR

Knape And Vogt 8650FM 20" (508mm) 150lbs. (68.039kg) Heavy-Duty Soft-Close, Full Extension Drawer Slides - PAIR - Image 2

Original price was: $52.36.Current price is: $36.65.

SKU: AGFYZ 372757 Category: Drawer Slides & Drawer Glides

Unbeatable Quality Guaranteed
7 days return and exchange
Green products, guaranteed.
Quality Meets Affordability

Description

The 8650FM Soft-Close Full Extension Drawer Slide is designed to accommodate wider and heavier drawers for today’s challenging applications such as commercial storage spaces, retail store displays, education markets or residential and commercial furniture. This slide has a shorter profile vs. traditional lateral file slides and features a convenient lever disconnect.

150lb load capacity.
Full-Extension travel.
Traditional and 32mm system hole pattern.
Butterfly lever disconnect release.
Flexible mounting tabs self-adjust to assure side clearance
Polymer stop cushions make closing drawers softer and quieter.
Max. Drawer width: 36″

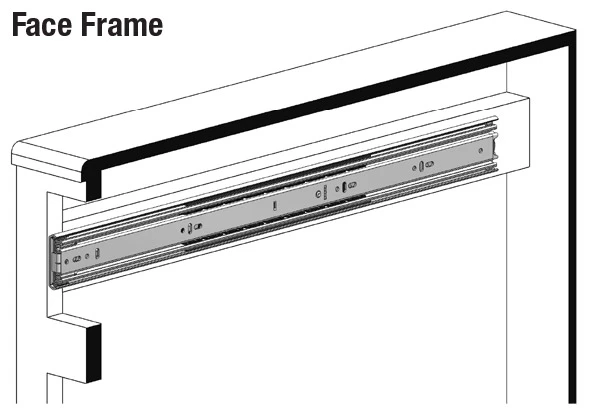

For face frame mounting slide must be blocked out. (do not use a rear mounting bracket)
Screws not included.

Manufacturer	Knape and Vogt
Manufacturer Location	Taiwan
Color/Finish	zinc
Material	steel
Style	side mount, for face and frameless construction
Type	heavy-duty drawer slide
Warranty	Limited lifetime warranty.
Mounting Hardware	Screws not included.
Load Rating	150lbs. (68.039kg)
Extension	full extension
Size	20" (508mm)
Mounting	Side
Closing Type	Soft Close
Side Clearance	1/2"
Additional	Recommended Use: Commercial storage spaces, retail store displays, education markets or residential and commercial furniture. Mounting: Side, for frame and frameless construction. For face frame mounting slide must be blocked out. (do not use a rear mounting bracket) Height: 1-15/16in.(50.4mm) Clearance: 1/2in.(13mm) plus 1/32in(1mm) minus 0in. each side. Features: Butterfly lever disconnect for easy drawer removal. Flexible mounting tabs self-adjust to side clearance. Non-handed. Slide Action: Telescoping, full-extension on precision steel ball bearings. Special Certifications: Meets or exceeds the ANSI performance standards
