Name: Check Out the New Series of Knape And Vogt GS4270 26" (660mm) 100lbs. (45.359kg) Soft-Closing Full-Extension Drawer Slides - PAIR on Sale with Free Shipping at Amerock Sales Shop!
SKU: AGFYZ 372809
Price: 16.89 USD
Availability: InStock

Sale!

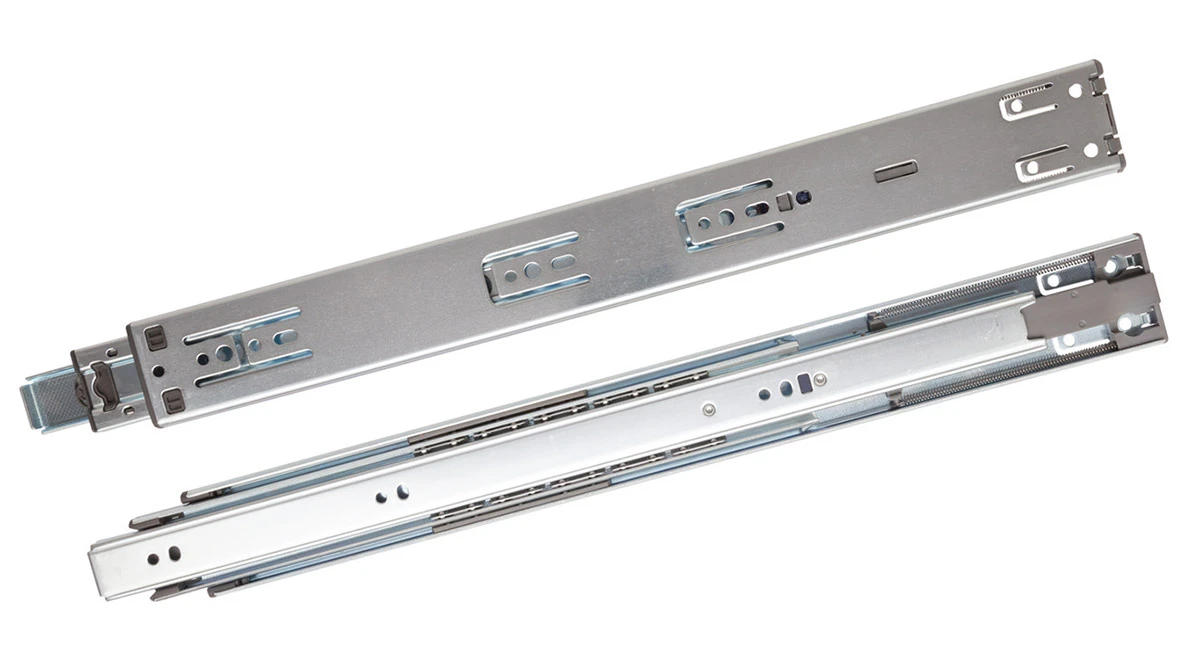

Knape And Vogt GS4270 26" (660mm) 100lbs. (45.359kg) Soft-Closing Full-Extension Drawer Slides - PAIR

Knape And Vogt GS4270 26" (660mm) 100lbs. (45.359kg) Soft-Closing Full-Extension Drawer Slides - PAIR - Image 2

Original price was: $24.13.Current price is: $16.89.

SKU: AGFYZ 372809 Category: Drawer Slides & Drawer Glides

Unbeatable Quality Guaranteed
7 days return and exchange
Green products, guaranteed.
Quality Meets Affordability

Description

The Knape and Vogt GS4270 Series Slide a top-quality ball-bearing import slide. An ideal choice for cabinet makers with cost sensitive projects who are looking for high-quality, consistent soft-close performance. This soft-close drawer slide offers 100lb. load capacity and has the latest in soft-close technology, delivering an ultra-smooth slide operation and a high-quality soft-close dampening function.

100lb load capacity.
Traditional and 32mm system hole pattern.
Lever disconnect release.
Flexible mounting tabs self-adjust to assure side clearance
Polymer stop cushions make closing drawers softer and quieter.
Max. Drawer width: 24″
Full-extension; telescopic movement on ball-bearings.
Screws not included.

Manufacturer	Knape and Vogt
Manufacturer Location	Taiwan
Color/Finish	zinc
Material	steel
Style	side mount, for face and frameless construction
Type	box/file drawer
Load Rating	100lbs. (45.359kg)
Extension	full extension
Size	26" (660mm)
Mounting	Side
Closing Type	Soft Close

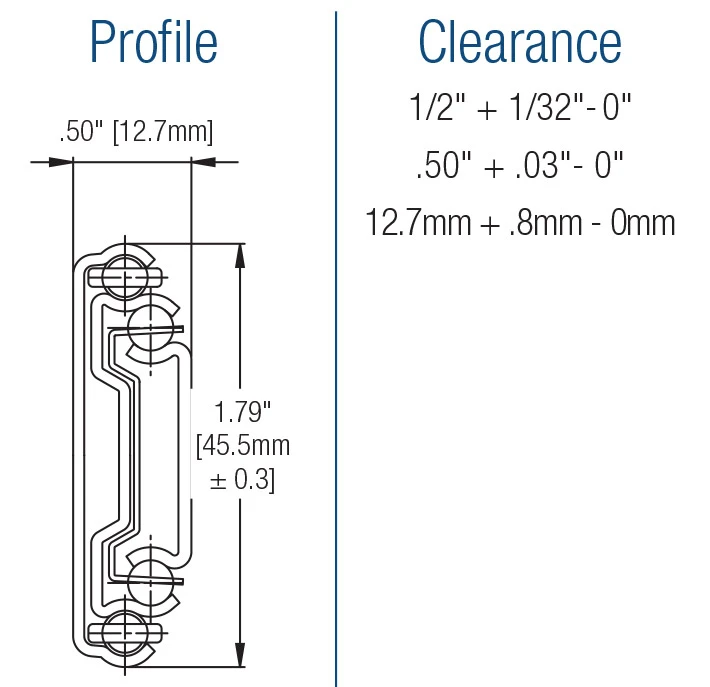

Side Clearance	1/2"
Additional	Recommended Use: Medium-duty, full extension drawer slide with self-closing feature ideal for kitchen cabinets and residential & office furniture. Mounting: Side, for frame and frameless construction. Height: 1-13/16in.(46mm) Clearance: .50in.(12.7mm) plus .032in.(1mm) minus 0in. each side. Extension: Full extension Features: Lever disconnect for easy drawer removal. Special Certifications: Meets or exceeds the ANSI performance standards
