Description

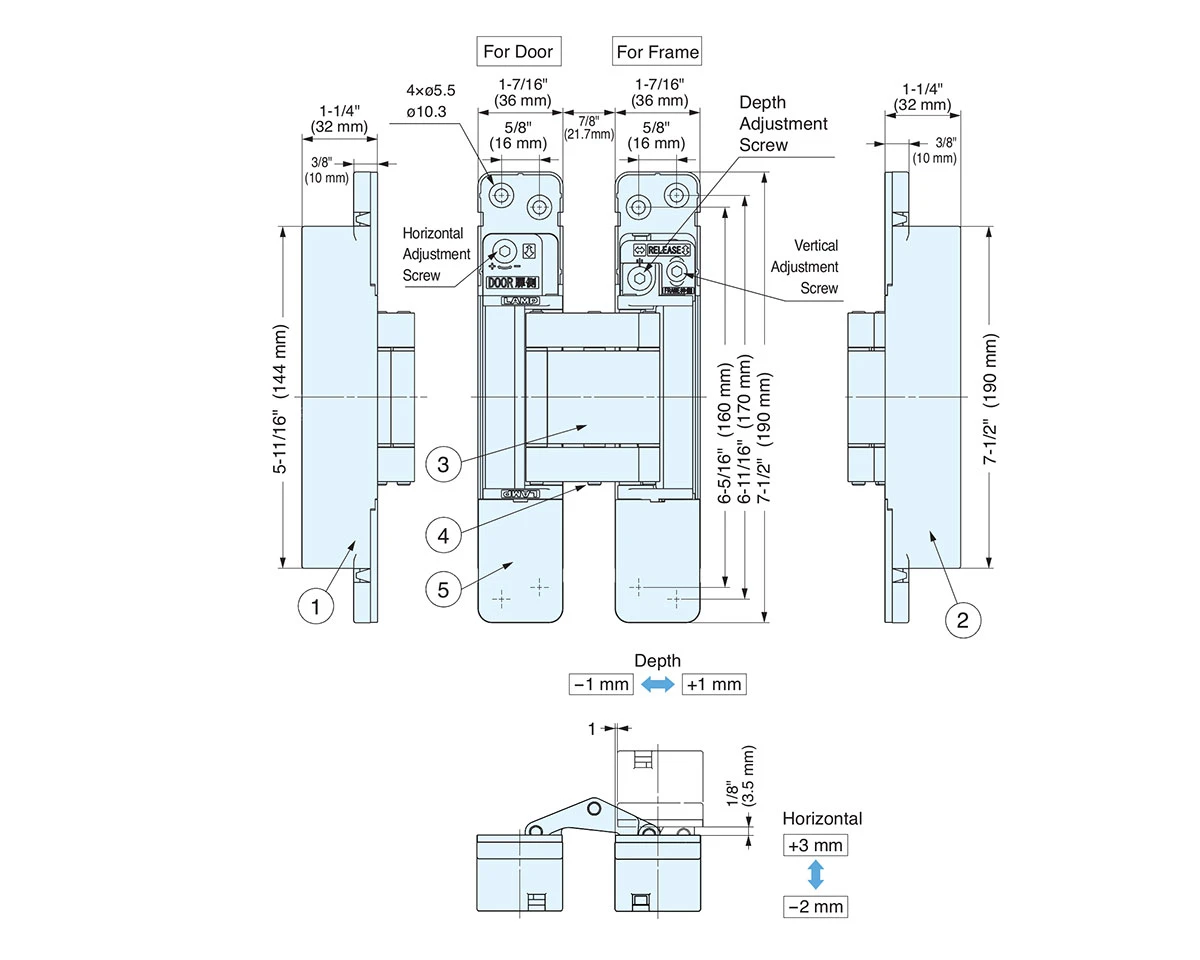

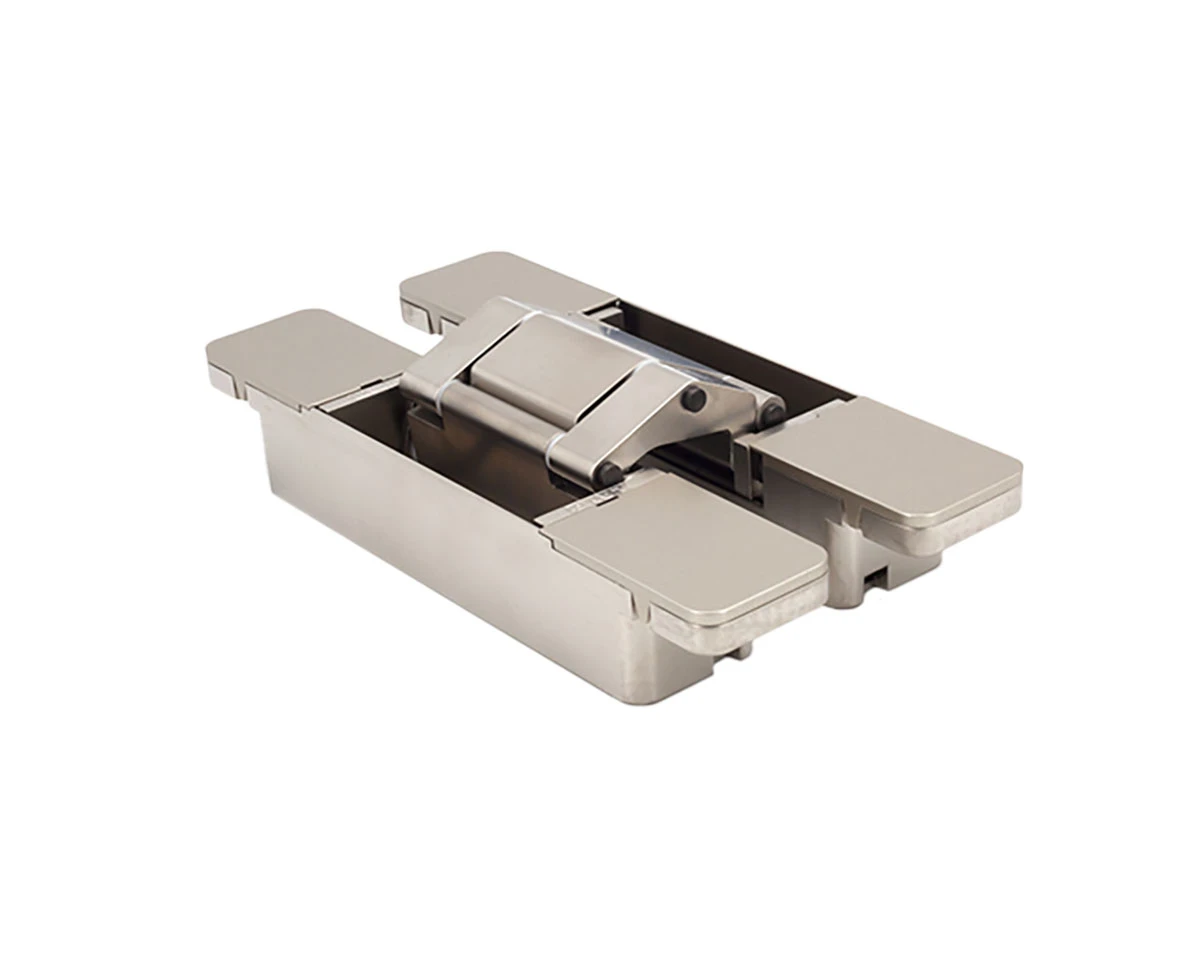

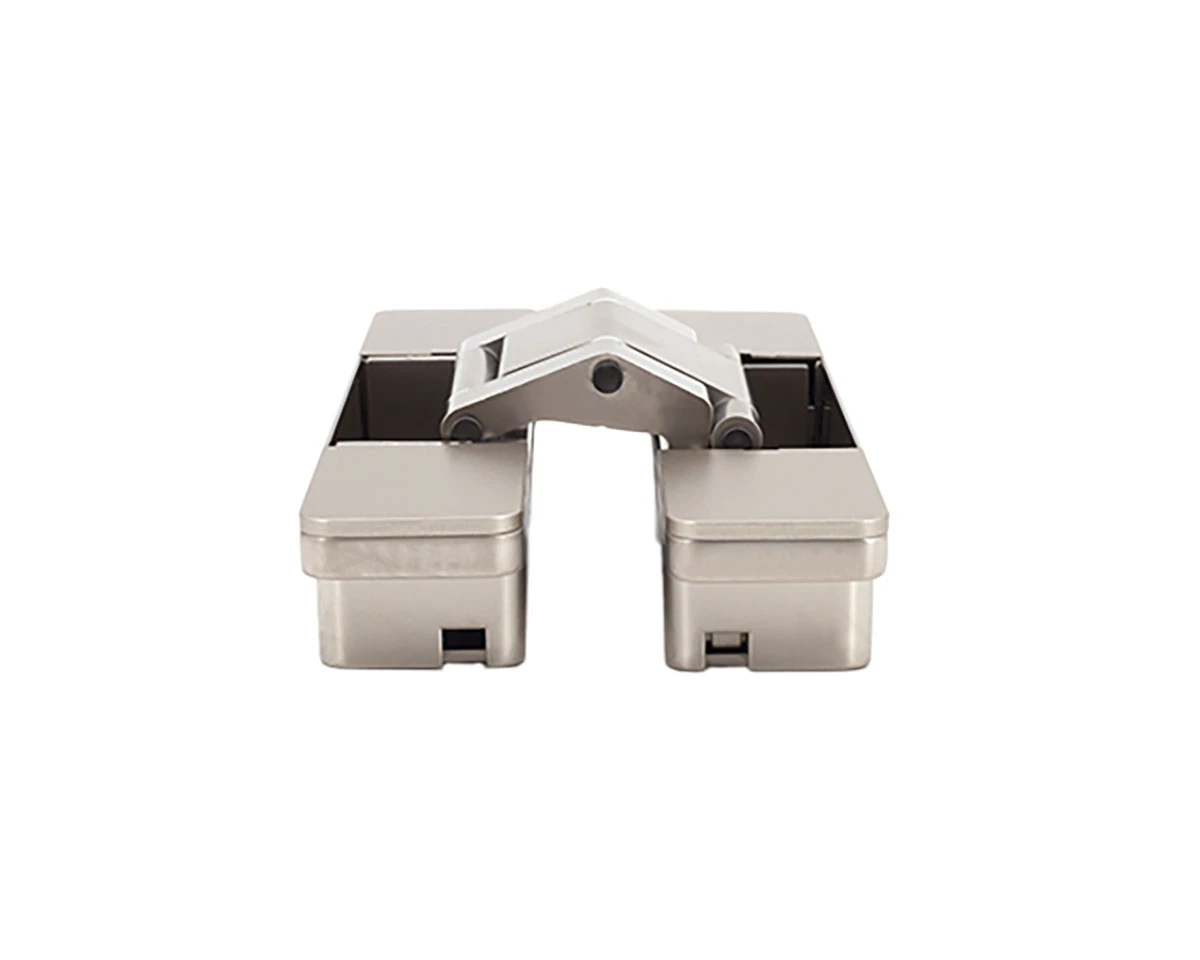

Sugatsune HES3D-W190 3-Way Adjustable Concealed hinge.

Has a long arm for a wider throw, allowing 3/8″ (10 mm) clearance for flush installation or 1/2″ (13 mm) clearance for installation with a molding. Opens to 180 degrees.
3 way adjustment function allows vertical, horizontal, and depth adjustment after hinge installed.
UL listed with a 3 hour fire rating.
Flanges come apart for the door to be provisionally hung for making adjustments. This provides a quick and easy installation when ready for fixing screws.
Replacement screw covers available for all finishes.
Only the HES3D-W190PN model includes metal cover plates, all other models include plastic cover plates.

Max. Door Weight: 220lbs. (100kg) / pair; 275lbs.(125kg) / 3pcs.
Minimum Door Thickness: 1-5/8″ (42mm).
Max. Door Size: 94-1/16″ (2440mm)H x 36″ (915mm)W.

Note: Designed for interior installation.

Manufacturer	Sugatsune
Manufacturer Location	Japan
Color/Finish	nickel/satin
Material	steel
Style	concealed hinges
Type	concealed hinge
Warranty	Limited lifetime warranty. Includes all necessary mounting hardware.
Height	7-1/2"
