Description

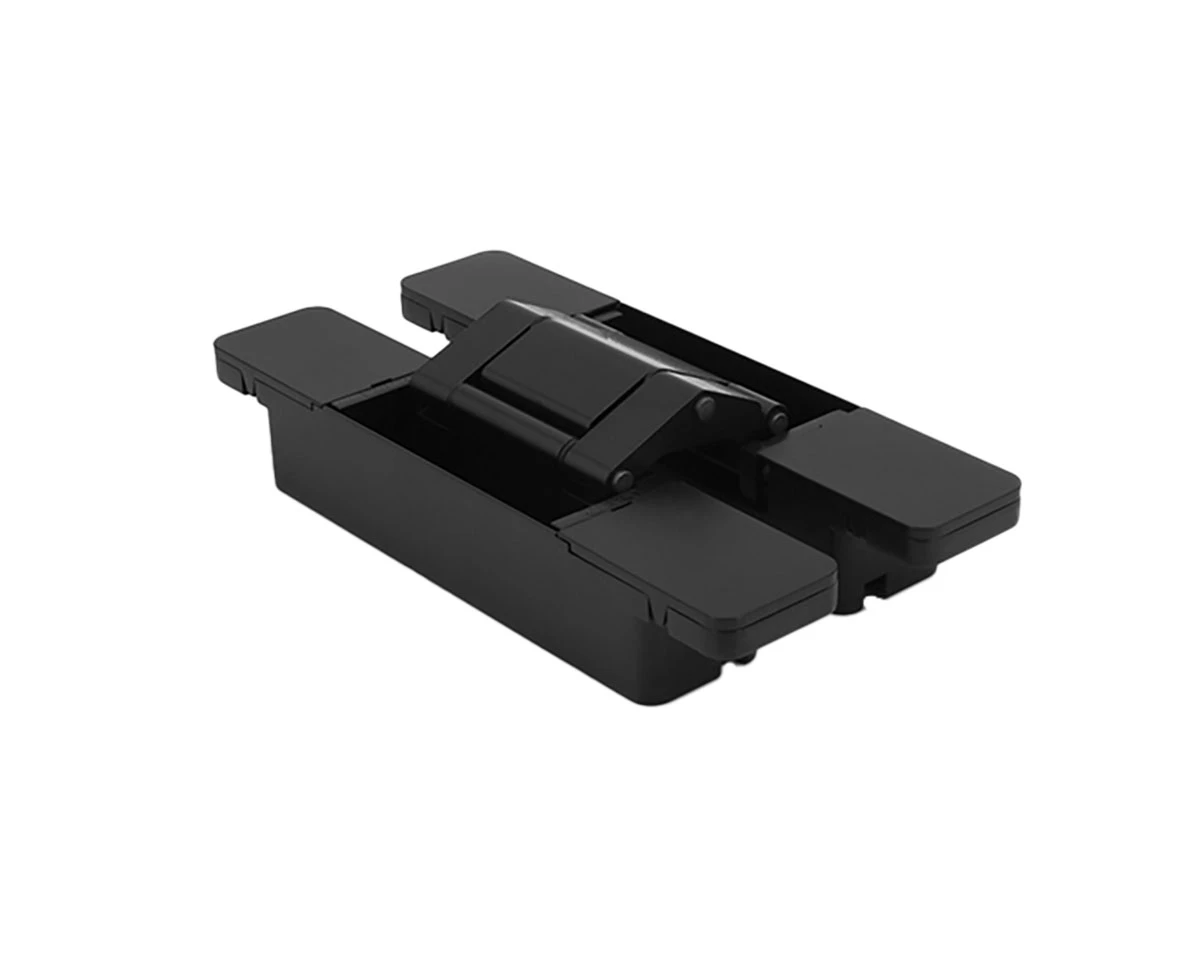

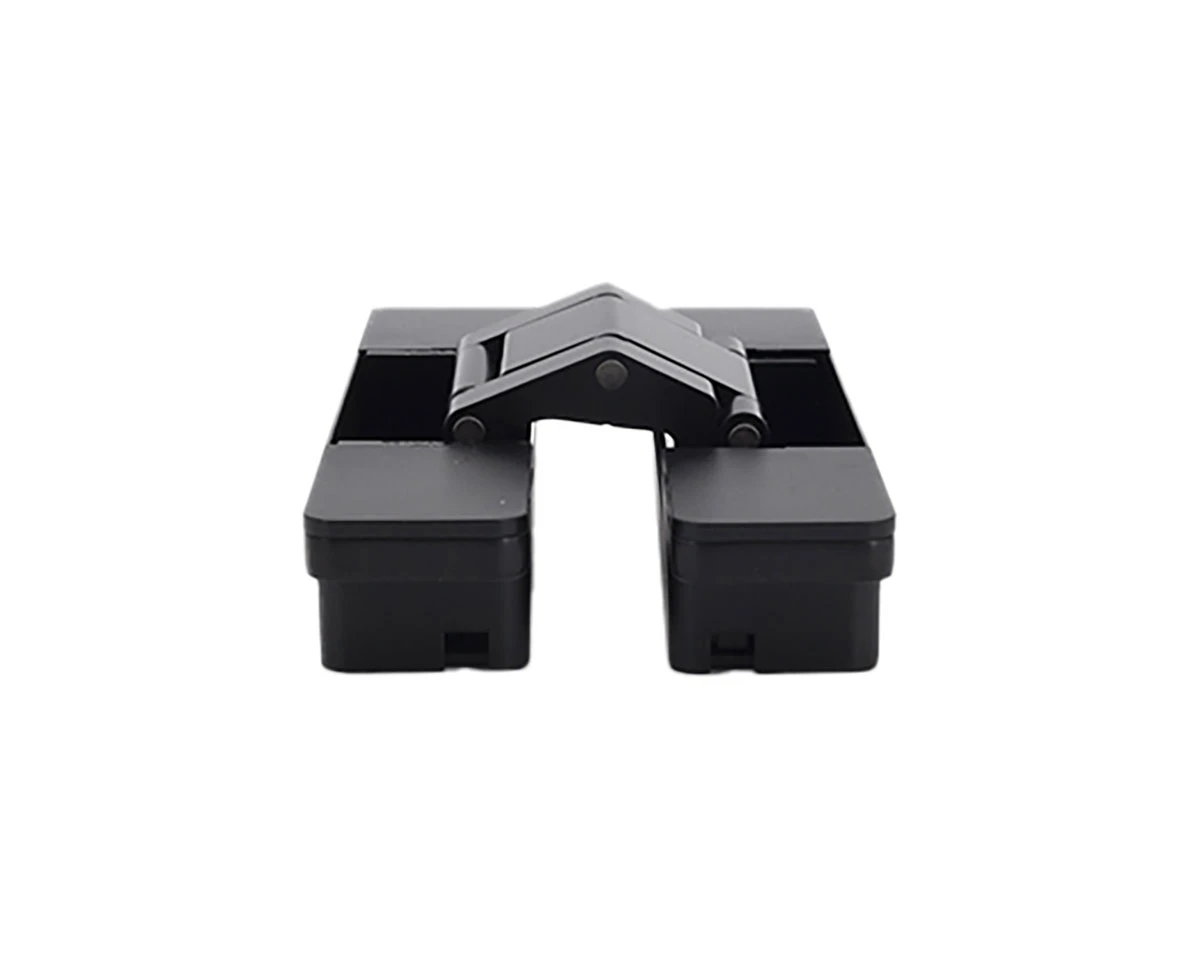

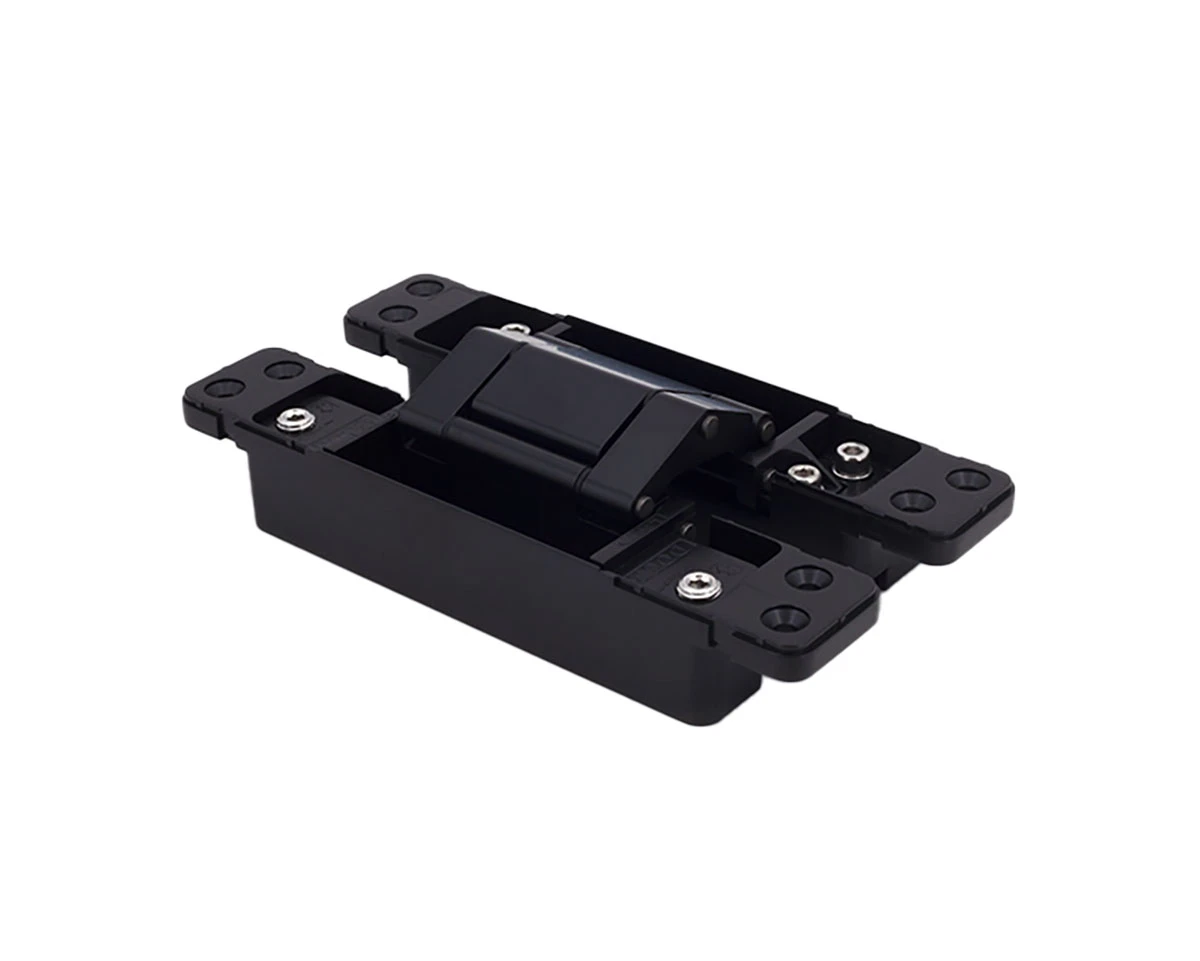

Sugatsune HES3D-W190 3-Way Adjustable Concealed hinge.
- Has a long arm for a wider throw, allowing 3/8″ (10 mm) clearance for flush installation or 1/2″ (13 mm) clearance for installation with a molding. Opens to 180 degrees.

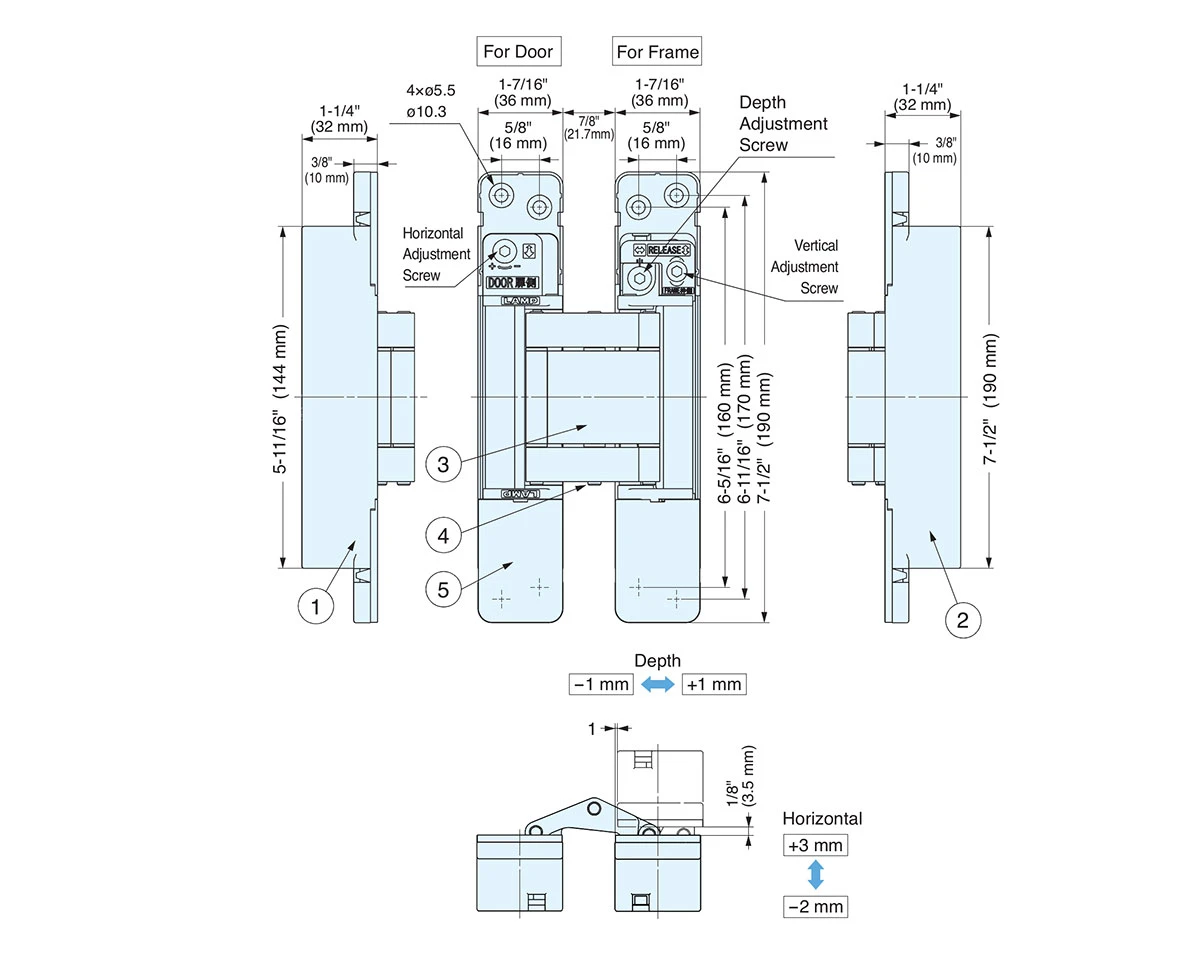

- 3 way adjustment function allows vertical, horizontal, and depth adjustment after hinge installed.
- UL listed with a 3 hour fire rating.
- Flanges come apart for the door to be provisionally hung for making adjustments. This provides a quick and easy installation when ready for fixing screws.
- Replacement screw covers available for all finishes.
- Only the HES3D-W190PN model includes metal cover plates, all other models include plastic cover plates.
- Max. Door Weight: 220lbs. (100kg) / pair; 275lbs.(125kg) / 3pcs.
- Minimum Door Thickness: 1-5/8″ (42mm).
- Max. Door Size: 94-1/16″ (2440mm)H x 36″ (915mm)W.
- Note: Designed for interior installation.
| Manufacturer | Sugatsune |
|---|---|
| Manufacturer Location | Japan |
| Color/Finish | black/matte |
| Material | steel |
| Style | concealed hinges |
| Type | concealed hinge |
| Warranty | Limited lifetime warranty. Includes all necessary mounting hardware. |
| Height | 7-1/2" |
