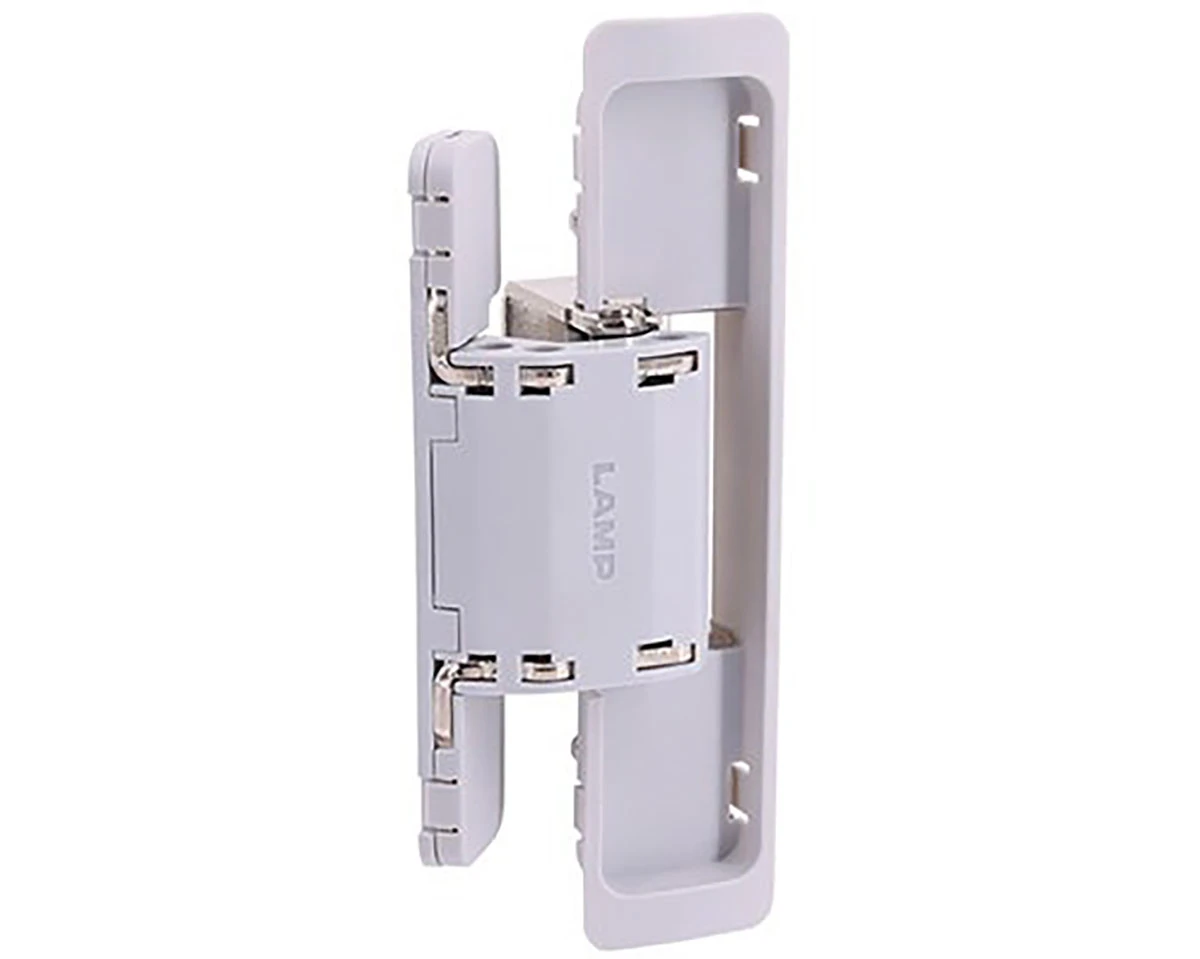

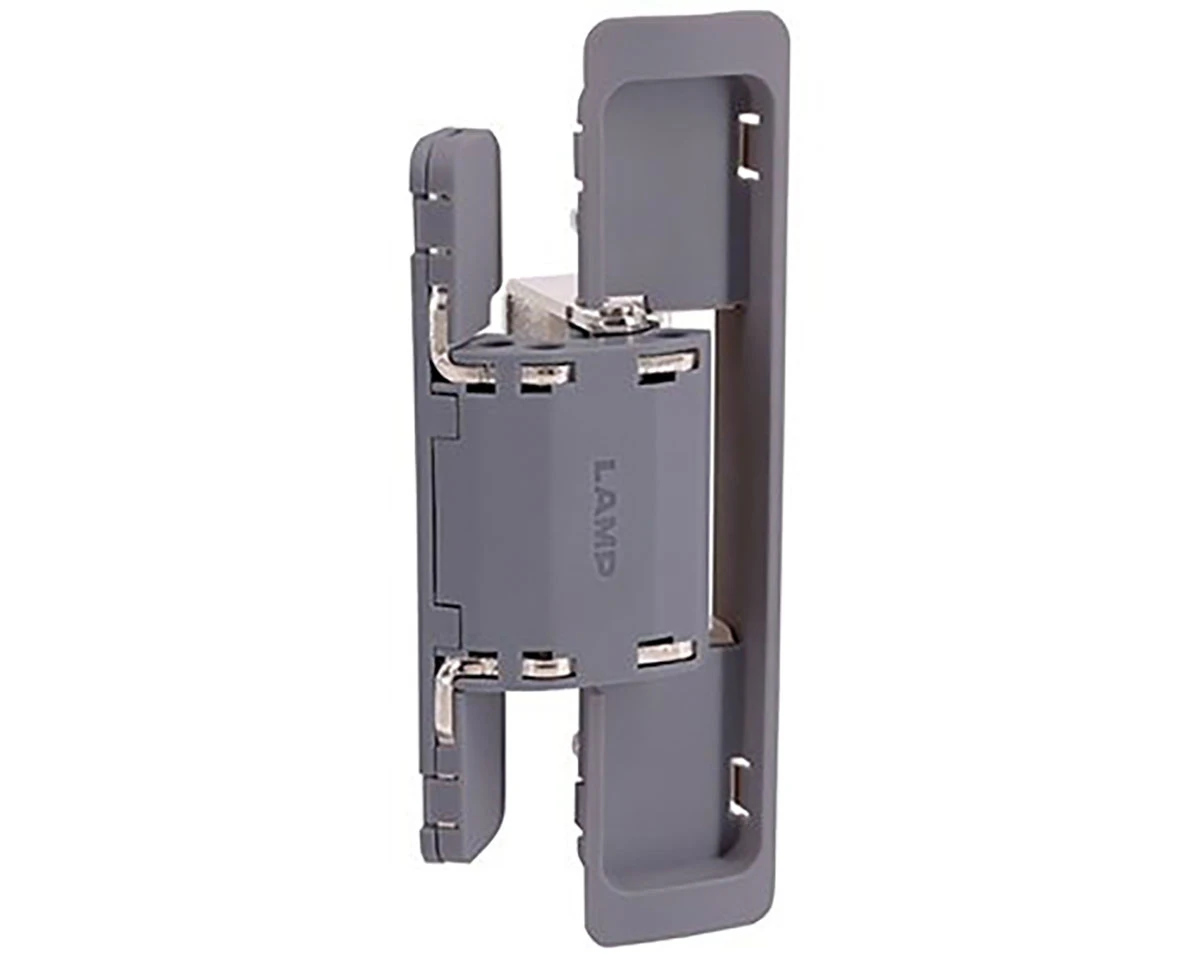

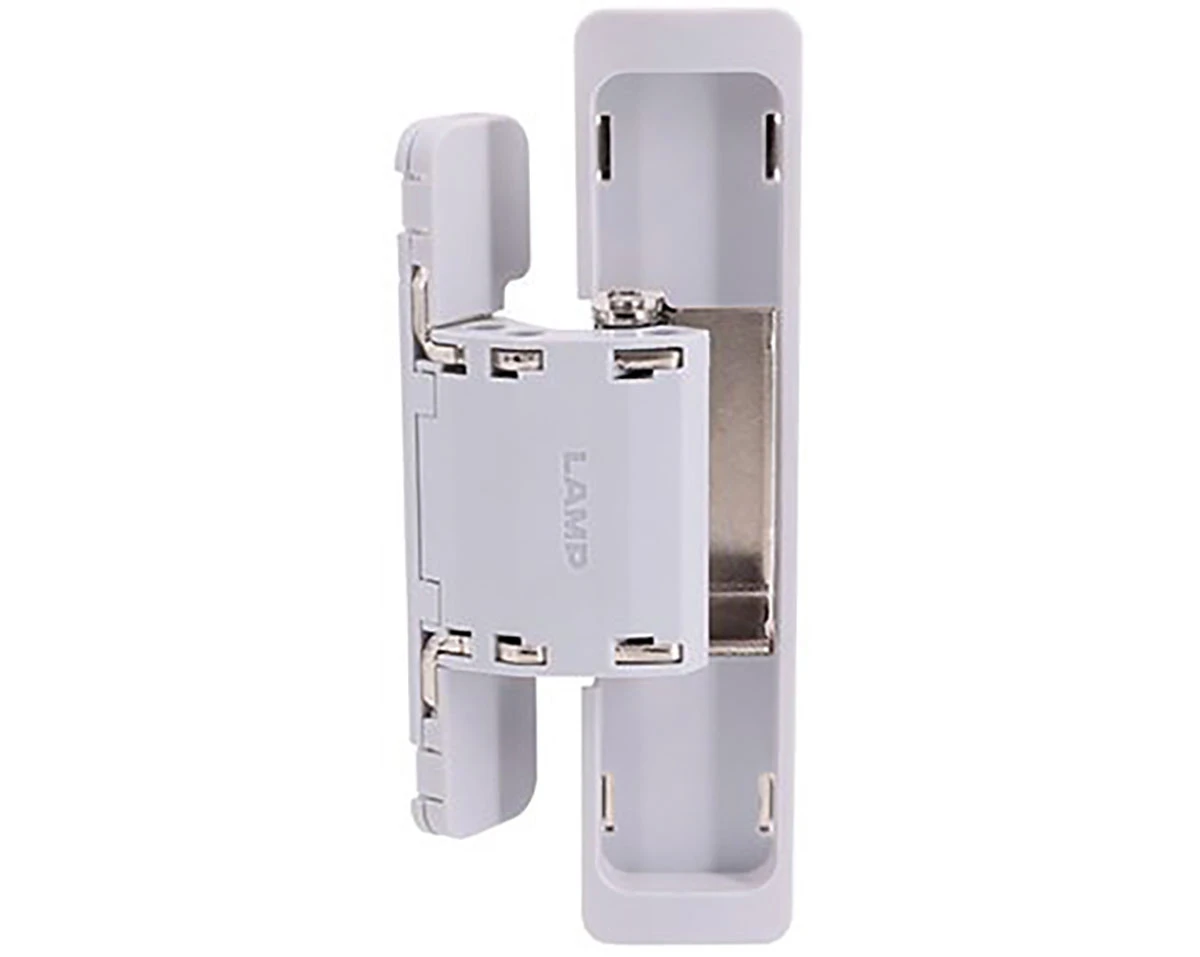

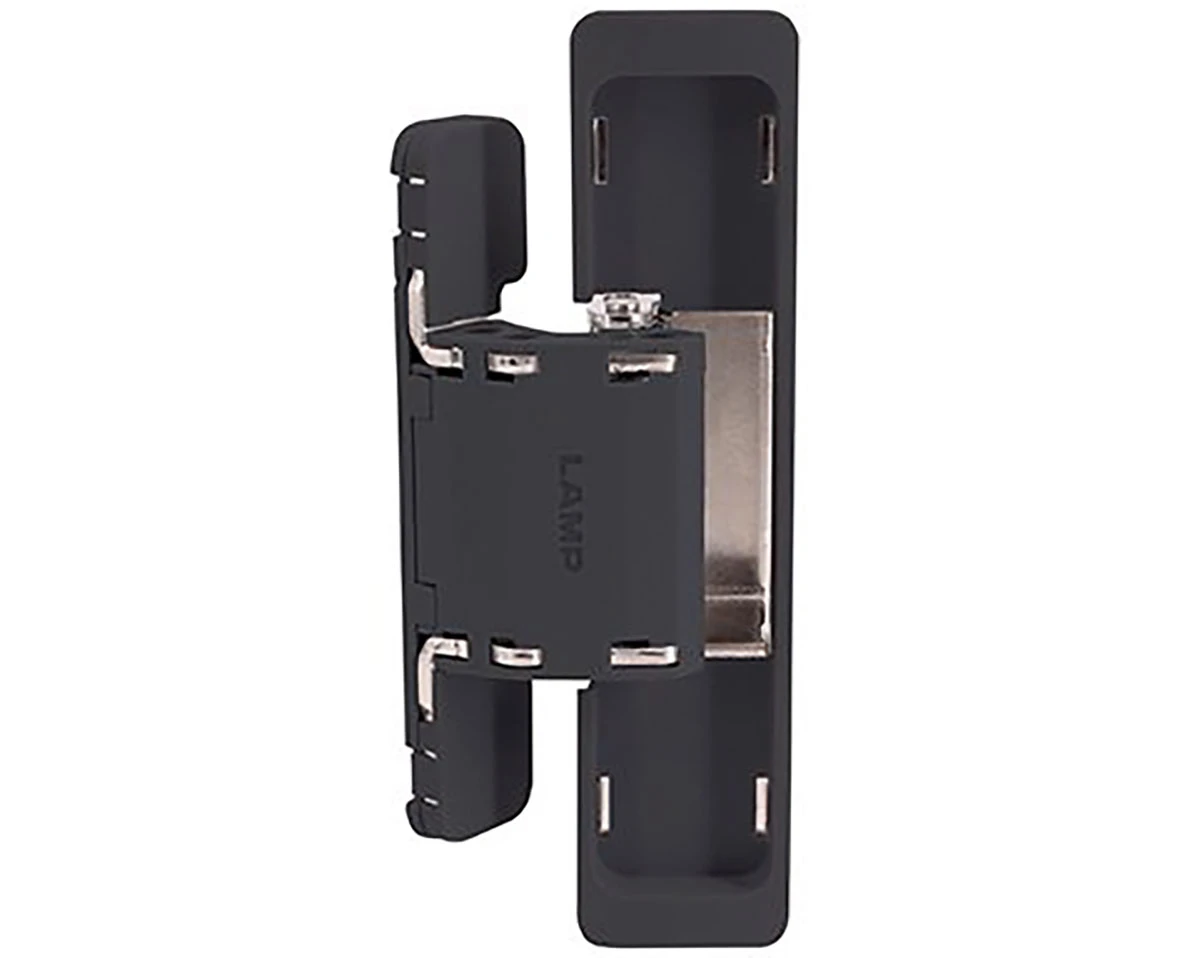

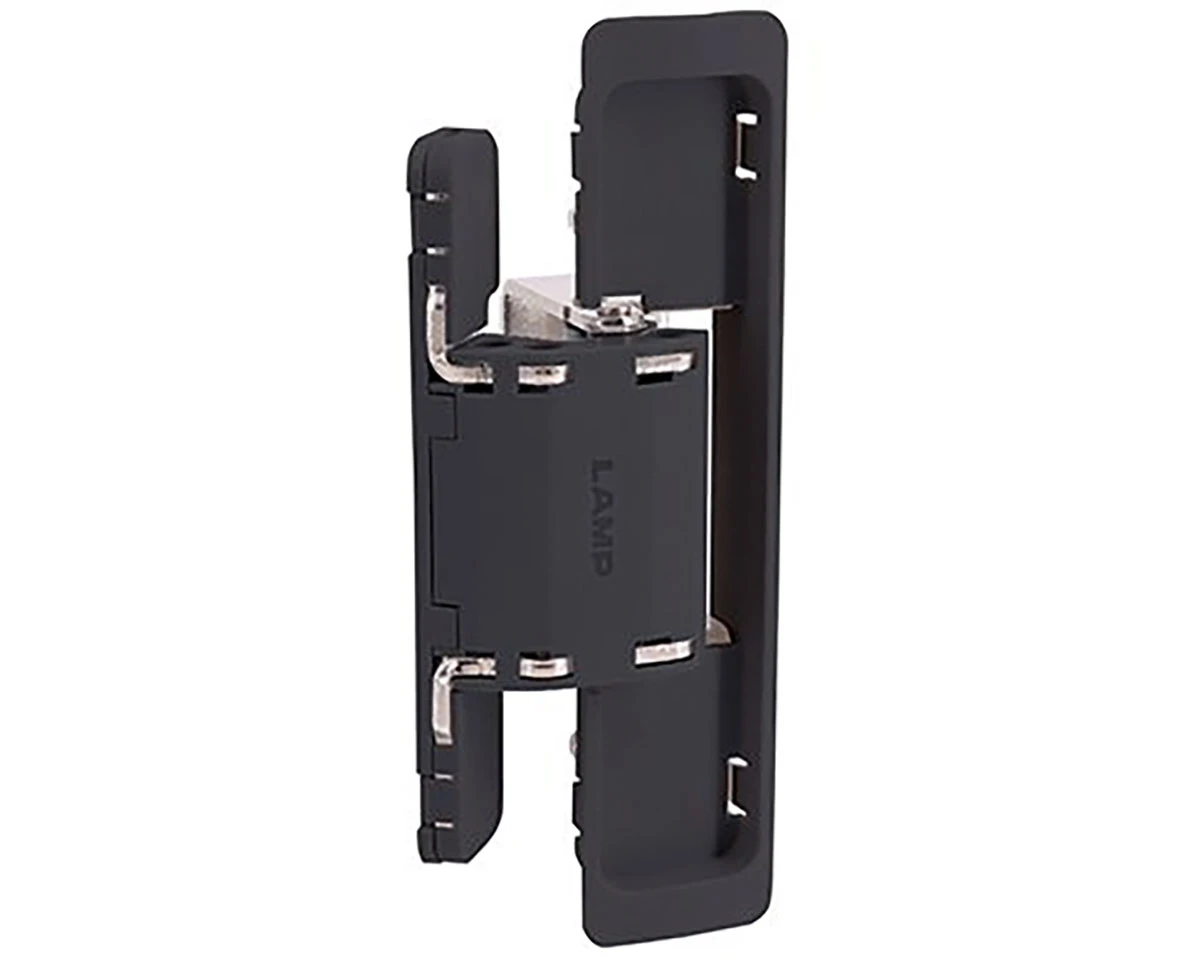

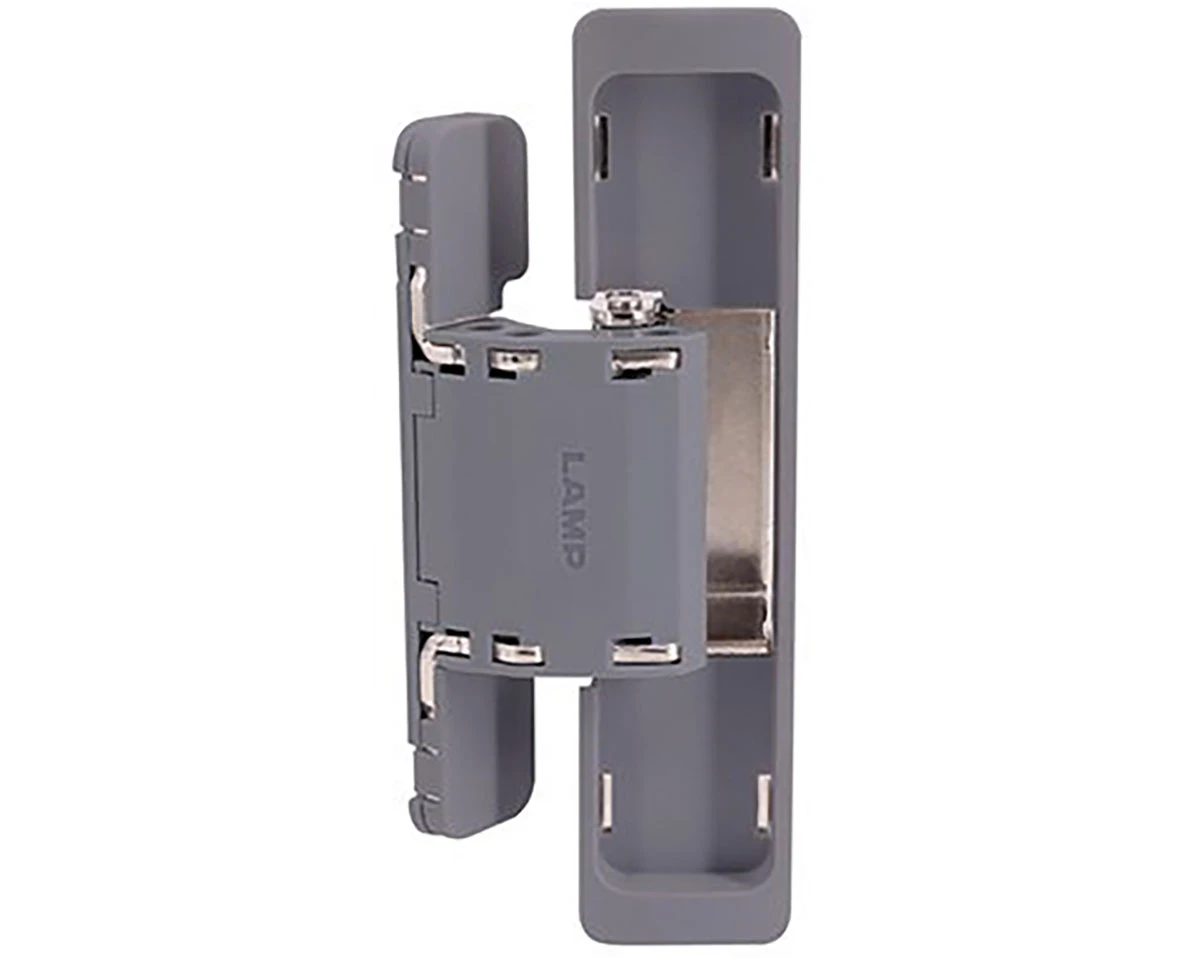

Sugatsune 3-Way Adjustable Surface Mount Concealed Hingefor 1-1/2″ (38mm) Min. Thick Doors – EACH

Sugatsune 3-Way Adjustable Surface Mount Concealed Hinge  features 3 Way adjustment function that allows vertical, horizontal, and depth adjustment after hinge installed.

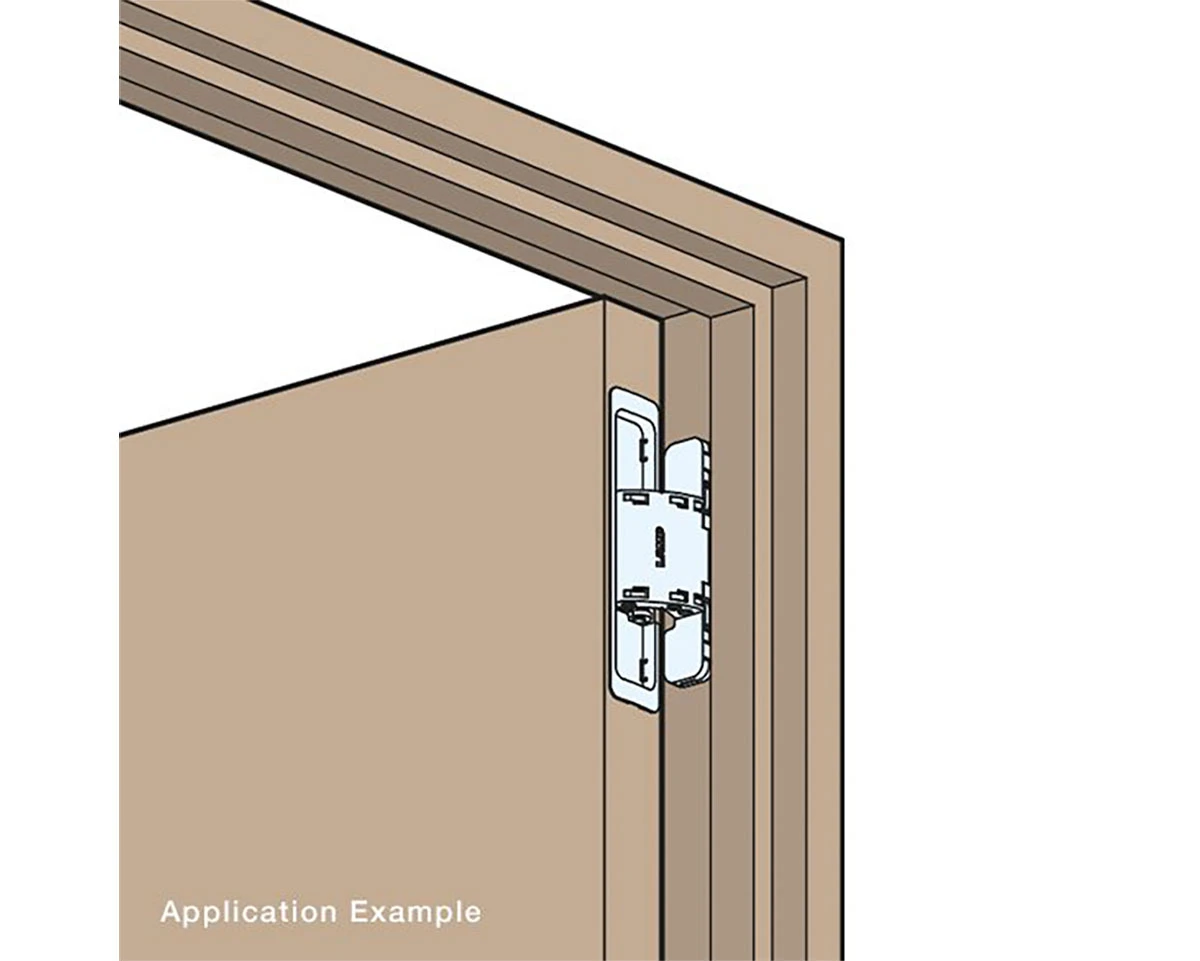

• Surface mounts to the door frame for easy installation.

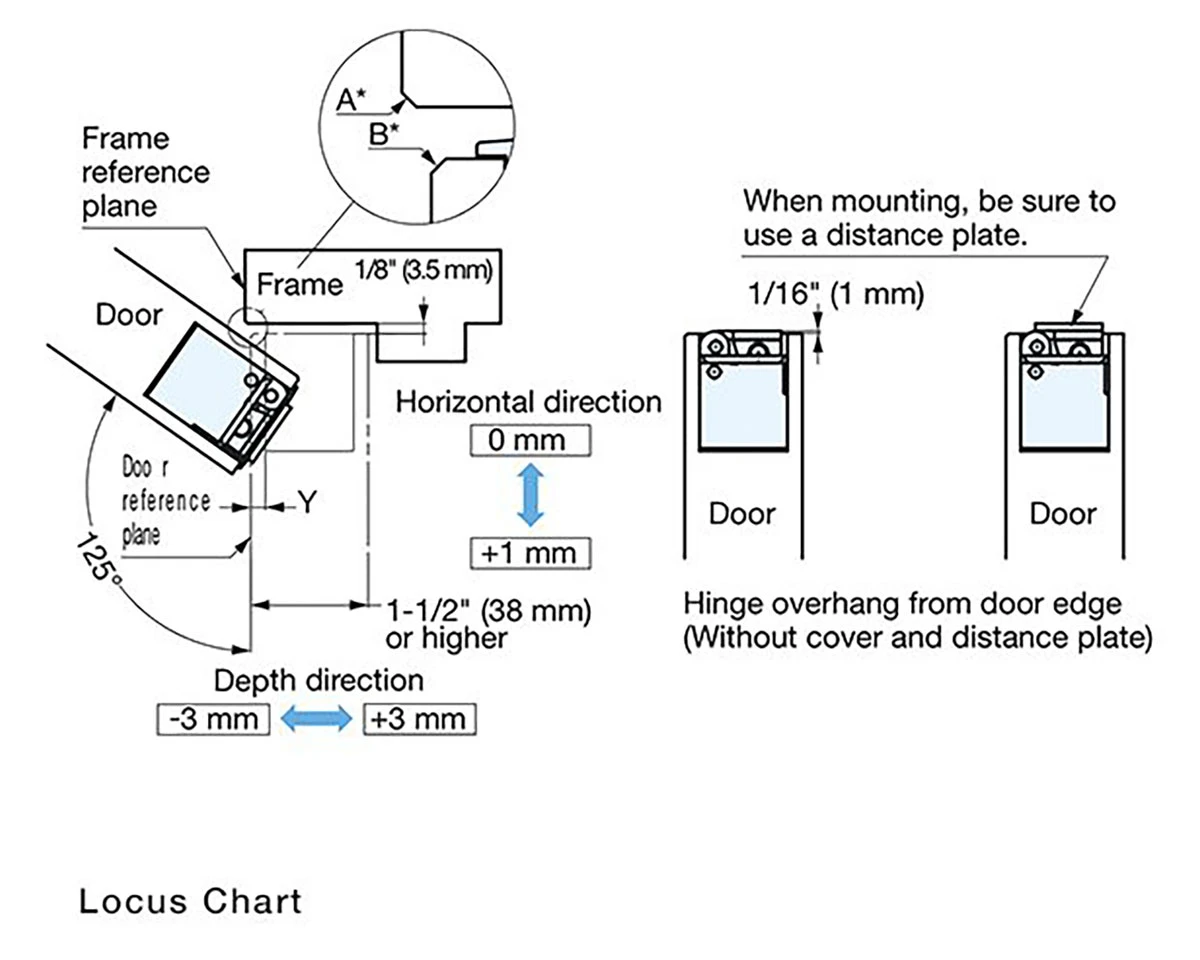

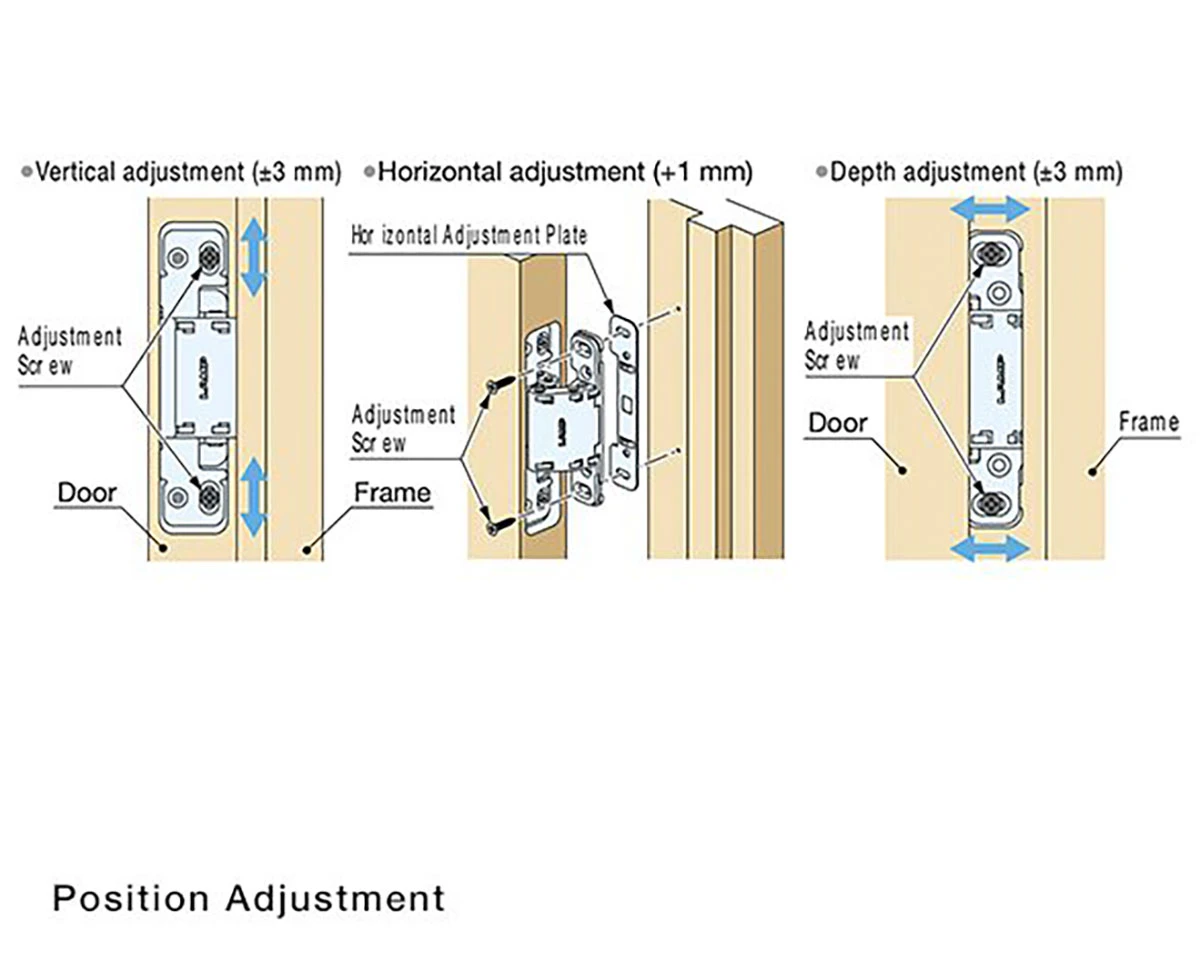

• Adjustable depth ±1/8” (3 mm), vertical ±1/8” (3 mm), horizontal with spacer ±1/16” (1 mm).
• Opens to 125°. Door stopper is required to prevent breakage of the hinges and failure of the door.
• Compact and sturdy design combined with an exceptionally simple install.
• Supplied with stainless steel flat head screws
• Cover hides all screw heads for clean appearance

• Max. Door Weight: 110lbs.(50kg) / 2 pcs.;  143lbs.(65kg) / 3 pcs.
• Minimum Door Thickness: 1-1/2″ (38mm)
• Max. Door Size: 106-5/16″ (2700mm)H x 35-7/16″ (900mm)W
• Note: Designed for interior installation.
