Sugatsune LIN-X1000 Lateral Opening Door System For Large Doors - (198lb.)

Sugatsune LIN-X1000 Lateral Opening Door System For Large Doors - (198lb.) - Image 2

Sugatsune LIN-X1000 Lateral Opening Door System For Large Doors - (198lb.) - Image 3

Sugatsune LIN-X1000 Lateral Opening Door System For Large Doors - (198lb.) - Image 4

Sugatsune LIN-X1000 Lateral Opening Door System For Large Doors - (198lb.) - Image 5

Sugatsune LIN-X1000 Lateral Opening Door System For Large Doors - (198lb.) - Image 6

Sugatsune LIN-X1000 Lateral Opening Door System For Large Doors - (198lb.) - Image 7

Sugatsune LIN-X1000 Lateral Opening Door System For Large Doors - (198lb.) - Image 8

Sugatsune LIN-X1000 Lateral Opening Door System For Large Doors - (198lb.) - Image 9

Sugatsune LIN-X1000 Lateral Opening Door System For Large Doors - (198lb.) - Image 10

Original price was: $374.00.Current price is: $99.99.

SKU: AGFYZ 365368 Categories: Door Hardware, Lateral Door Opening Systems, Sliding Door Track Systems

Unbeatable Quality Guaranteed
7 days return and exchange
Green products, guaranteed.
Quality Meets Affordability

Description

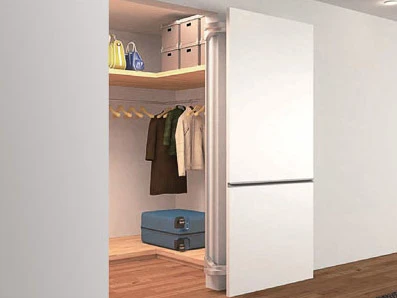

The Sugatsune LIN-X1000 Lateral Door Opening System is designed to provide smooth movement with a soft-close feature that operates on large doors weighing up to 198-lbs. Providing 4-way adjustability to ensure a flush, clean look when closed, the LIN-X-1000 allows doors up to 43 5/16” wide to swing open in a small radius making it a great application for custom pantry doors, storage rooms or other applications where space may be a constraint.

LIN-X1000 Set Includes: All components and installation instructions to install 1 lateral opening door.
Lateral Opening Mechanism allows doors to open parallel to the face of the cabinet/wall and moves door completely to provide full access to the opening.
Heavy Duty: Max. weight 198 lbs.

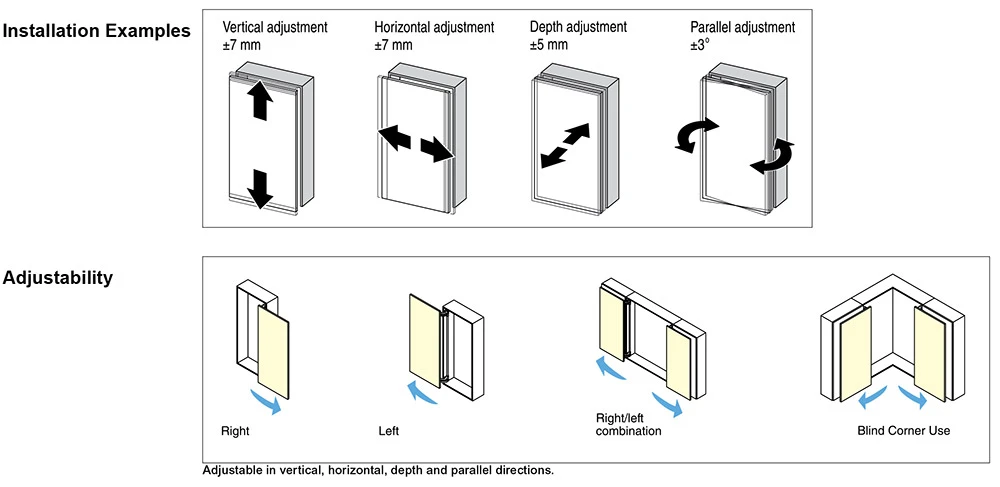

4-Way Adjustable: Vertical, horizontal, depth and parallel adjustment.
Smooth Movement: Built-in dampers provide a smooth soft-closing movement.
Non-handed: can be used for left- or right-opening doors.
Easy Installation and adjustment – Only 6 parts needed to install door.
Designed for overlay installation, but can be installed flush with the surrounding cabinet or wall. (Please call for details on inset installations.)
Many Possible Opening Styles – Can function as a single door, a parallel opening pair, a sideways opening pair, or as an L corner opening.
Door handle can be installed in any position on door.
LIN-X Mechanism only, door not included.

Manufacturer	Sugatsune
Manufacturer Location	Japan
Material	aluminum
Style	commercial or residential
Warranty	2 year limited warranty.

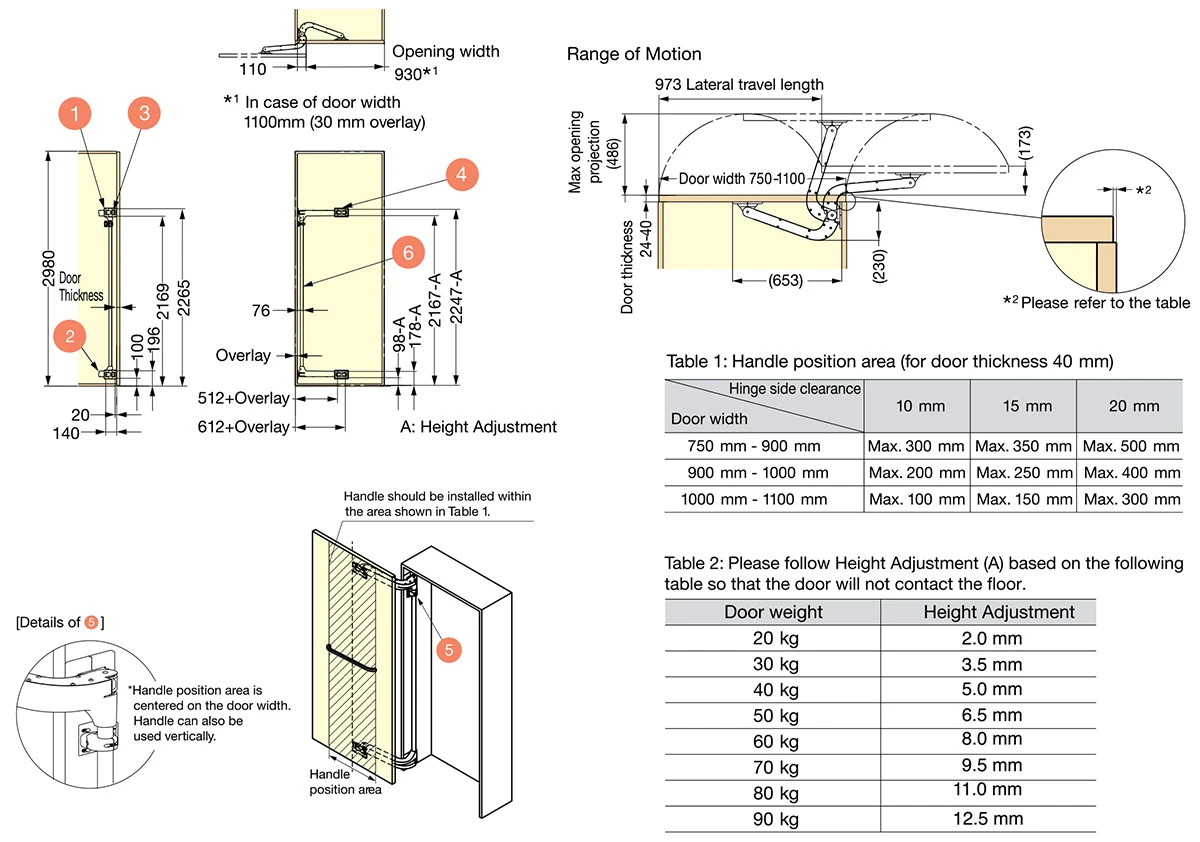

Additional	Door Overlay: 3/4" Door Width: 29-17/32" ~ 43-5/16" (750 ~ 1100mm) Door Height: Max. 117-21/64" (2980mm) Door Thickness: 15/16" ~ 1-37/64" (24 ~ 40 mm) Door Weight: Max. 198 lbs (90kg) / Door NOTE: This item is able to handle doors that are much larger than any other in its product series. It is capable of working with doors with widths up to 1100mm, with a largest opening width of 900mm, it can be used in areas where wheelchairs access.The largest height of door it can be used with is 2980mm. The LIN-X1000 is capable of being used with doors with a weight of up to 90kg. It has a built in damper which causes the door to close silently even if the door is heavier. Because the opening radius approximately half of a regular hinge, it can be used in narrower spaces. It also has fewer parts than conventional items, making it much easier to install.
